Working Temperature

工作温度

· Max. Temperature: 1700 °C  (< 1 hr)

最高温度：1700℃(< 1 hr)

· Continuous working temperature: 1650 °C

持续工作温度：1650℃

· Heating Rate: below 1400℃，≤10°C /min

                1400-1650℃，≤5°C /min

升温速率：1400℃以下，≤10℃/min；1400到1650℃，≤5℃/min

Heating Zone

加热区

· Heating Zone Length:          11.81" ( 300mm)

      加热区长度：11.81" ( 300mm)

· Constant  Zone Length:          5.9" (150mm)

恒温区长度：5.9" (150mm)

Temperature Controller

控温方式

· PID automatic control and auto-tune function.

   模糊PID控制和自整定调节

· 30 programmable segments for precise thermal processing.

   智能化30段可编程控制

· Built-in protection for the over-heated and broken thermocouple.

超温和断偶报警功能

· Temperature Accuracy: +/- 1 °C.

   控温精度：+/- 1 °C

· S type thermocouple.

   S型热电偶

Heating Elements

加热元件

·  MoSi2 rod

   硅钼棒

Processing Tube

炉管

· Ceramic tube:  60/80/100OD*1000Lmm

      刚玉管：60/80/100（外径）*1000（长）mm

· Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center. (Ceramic blocks must be fully inserted into the furnace chamber before heating).

   两个氧化铝管堵阻挡管中心产生的热辐射（氧化铝管堵必须在加热前塞进炉膛）

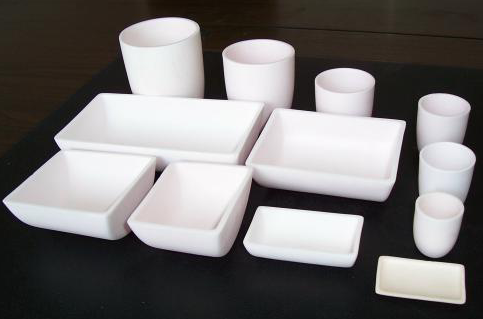

  Ceramic boat to place the sample

   刚玉舟可用于放置样品

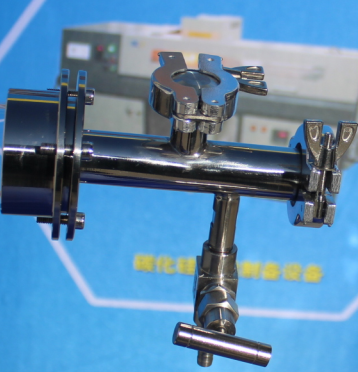

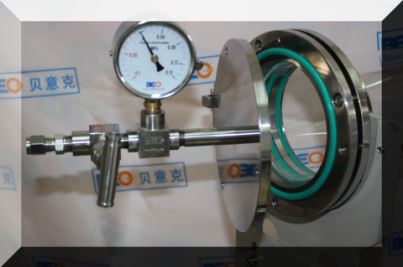

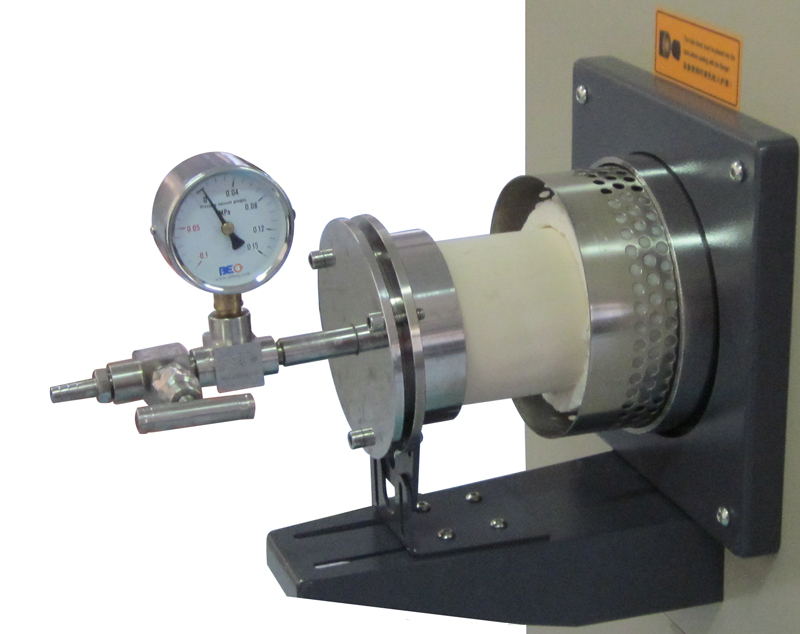

Vacuum Flange

真空法兰


· Choose clamp flange or folding flanges depends on diameter of tube

     根据管径不同，法兰分为卡箍和折页两种密封方式

Vacuum Pressure

真空压力

· 133torr can be achieved by mechanical pump

   机械泵可达133torr（1pa）

· 10^-5 torr can be reached by molecular pump

   分子泵可达10^-5torr（10^-3pa）

· Please clik the picture below to order vacumm pump

点击下列图片订购真空泵

Dimensions

尺寸

Tube body 610*440*720mm（L*W*H without tube & flange）

炉体： 610*440*720mm（不含炉管和法兰）

Net weight设备净重

130kgs

Warranty

质保

One year limited warranty with lifetime support  (Consumable parts such as processing tubes, and O-rings are not covered by the warranty, please  order replacements at related products below.)

一年质保终身支持（消耗品如炉管，O型圈不在质保范围内，可点击下方订购更换件）

Compliance

认证

· CE Certified

     CE认证

· All electric components ( >24V) are UL / MET / CSA certified

   所电器元件（ >24V）符合UL/MET/CSA认证标准

· The furnace is ready to pass TUV(UL61010)  or CSA certification at extra cost. （ please click marks below to learn details )

     可付费进行TUV(UL61010)或者CSA认证（点击下方标志了解更多详情）

Operation Instructions

操作指导

· Click todownload the operating manual

点击下载使用说明书

Application Note

应用

l Widely used for high tem. Experiment environment, for example, vacuum or atmosphere sintering, substrate coating

   广泛用于真空或气氛烧结、基片镀膜等要求加热温度较高的实验环境

l Widely used for new material field,such as semiconductor,nanometer material,carbon fiber,graphene

广泛应用在半导体、纳米材料、碳纤维、石墨烯等新材料、新工艺领域
