Working Temperature

工作温度

· Max. Temperature: 1400 °C  (< 1 hr)

最高温度：1400℃(< 1 hr)

· Continuous working temperature: 1300 °C

持续工作温度：1300℃

· Heating Rate: ≤10°C /min

升温速率：≤10℃/min

Heating Zone

加热区

· Heating Zone Length:          15.74" (400mm)

  加热区长度：15.74" (400mm)

· Constant  Zone Length:          7.85" (200mm)

恒温区长度：7.85" (200mm)

Temperature Controller

控温方式

· PID automatic control and auto-tune function.

   模糊PID控制和自整定调节

· 30 programmable segments for precise thermal processing with human machine interface

   智能化人机界面30段可编程控制

· Built-in protection for the over-heated and broken thermocouple.

超温和断偶报警功能

· Temperature Accuracy: +/- 1 °C.

   控温精度：+/- 1 °C

· S type thermocouple.

   S型热电偶

Heating Elements

加热元件

·  6 U type Silicon carbide rod

   6根U型硅碳棒

Processing Tube

炉管

· Ceramic tube:  50/60/80OD*1000Lmm(optional)

      刚玉管：50/60/80（外径）*1000（长）mm （管径可选）

· Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center. (Ceramic blocks must be fully inserted into the furnace chamber before heating).

   两个氧化铝管堵阻挡管中心产生的热辐射（氧化铝管堵必须在加热前塞进炉膛）

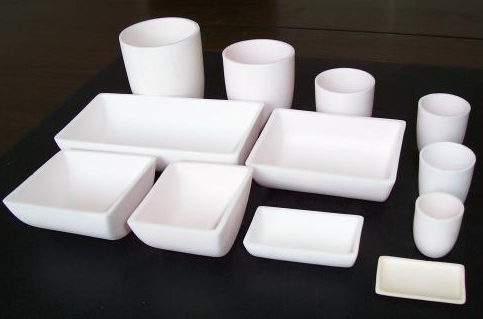

Ceramic boat to place the sample

   刚玉舟可用来放置样品

Vacuum Flange

真空法兰


· Custmized flange

  定制法兰

Display显示

· 7” LCD touch screen

7英寸LCD触摸屏

Vacuum Pressure

真空压力

· 133torr can be achieved by mechanical pump

   机械泵可达133torr（1pa）

· 10^-6 torr can be reached by molecular pump

   分子泵可达10^-6torr（10^-3pa）

· Please clik the picture below to order vacumm pump

点击下列图片订购真空泵

Dimensions

尺寸

Tube body 908*440*674mm（L*W*H without tube & flange）

炉体：908*440*674mm（不含炉管和法兰）

Net weight设备净重

90kgs

Warranty

质保

One year limited warranty with lifetime support  (Consumable parts such as processing tubes, and O-rings are not covered by the warranty, please  order replacements at related products below.)

一年质保终身支持（消耗品如炉管，O型圈不在质保范围内，可点击下方订购更换件）

Compliance

认证

· CE Certified

     CE认证

· All electric components ( >24V) are UL / MET / CSA certified

   所电器元件（ >24V）符合UL/MET/CSA认证标准

· The furnace is ready to pass TUV(UL61010)  or CSA certification at extra cost. （ please click marks below to learn details )

     可付费进行TUV(UL61010)或者CSA认证（点击下方标志了解更多详情）

Operation Instructions

操作指导

Click to download the operating manual

点击下载使用说明书

Application note

应用

·  Annealing and sintering under vacuum or atmosphere

     真空或气氛条件下进行退火和烧结

·  New material field

     新材料领域
