Voltage

电压

· Voltage rated:  AC380V 50/60HZ

· 额定电压： AC380V 50/60HZ

Working Temperature

工作温度

· Max. Temperature: 1700 °C ( 1 hr)

最高温度：1700℃ (1小时)

· Continuous working temperature: ≤1650℃

持续工作温度：≤1650℃

· Recommended heating rate: below 1400°C,≤10°C /min,1400-1600°C,≤5°C /min

推荐升温速率：1400℃以下，≤10°C /min,1400-1600℃，≤5°C /min

Temperature Controller

控温方式

· PID automatic control and auto-tune function.

   模糊PID控制和自整定调节

· 30 programmable segments for precise thermal processing.

   智能化30段可编程控制

· Built-in protection for the over-heated and broken thermocouple.

超温和断偶报警功能

Length of heating zone

加热区长度

· 760mm/960mm

Length of constant zone

恒温区长度

·400mm/650mm

Heating Elements

加热元件

· 硅钼棒

· MoSi2 rod

Processing tube

炉管

· Ceramic tube:60/80*1200mm/14000mm(optional）

   刚玉管：60/80*1200mm/1400mm（管径可选）

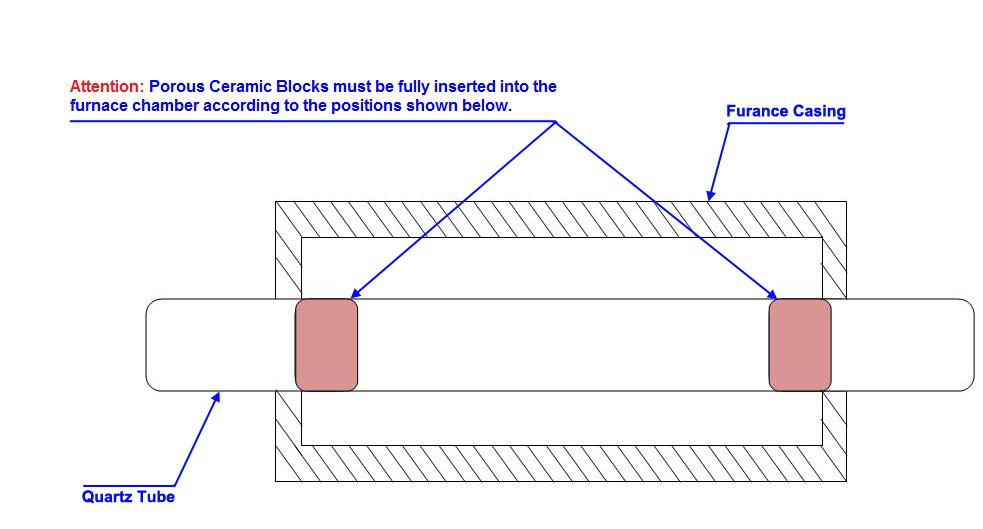

· Tube blocks are included for blocking heat radiation generated from tube center. Must be fully inserted into the furnace chamber before heating at the correct position.

· 两个管堵阻挡管中心产生的热辐射,必须在加热前且放置在炉膛的正确位置.

Temperature Accuracy

控温精度

+/- 1 °C

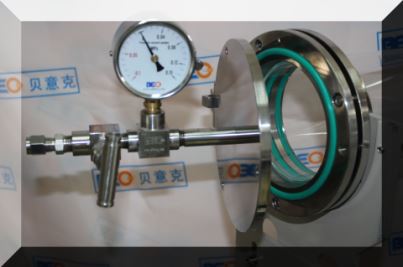

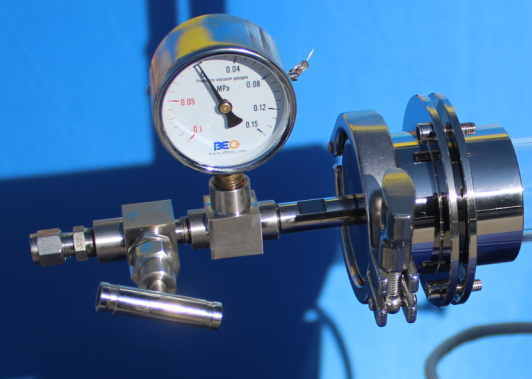

Vacuum Flange

真空法兰


· clamp flange and folding flange denpends on the diameter of tube

   根据管径不同，法兰分为卡箍和折页两种.

Vacuum Pressure

真空压力

· 133torr can be achieved by mechanical pump

   机械泵可达133torr（1pa）

· 10^-6 torr can be reached by molecular pump

   分子泵可达10^-6torr（10^-3pa）

· Please click the picture below to order vacuum pump

点击下列图片订购真空部件


Warranty

质保

Two year limited warranty with lifetime support  (Such consumable parts as tube, quartz block, and O-rings, etc. are NOT supported by the warranty)

2年质保终身支持（消耗品如炉管，石英管堵，O型圈等不在质保范围内）

Warning

注意事项

· Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

· 在使用过程中炉膛表面可能出现细小裂纹。这是正常情况，裂纹可以用氧化铝涂层修复。

Compliance

认证

· CE Certified

CE认证

· The furnace is ready to pass TUV (UL61010) or CSA certification at extra cost.

可付费进行TUV(UL61010)或CSA认证

Operation instructions

操作指导

· Click to download the operating manual

· 点击下载说明书
